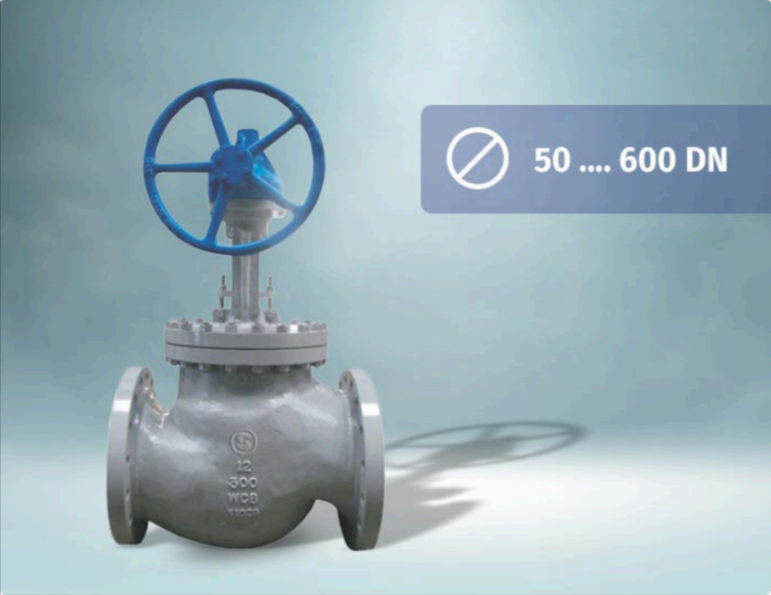

Globe Valves are extensively used through-out the
Refineries,Hydrocarbon,Energy and process & the power industries.
Size: 2″ up to 24″ (DN 50 up to DN 600)
Pressure Rating: ASME 150# to 2500#
Materials: Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels,
Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels,
Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy &
Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay
Design Standard: BS 1873, API 623
Pressure / Temperature Rating: ASME B 16.34

Test (Inspection) Standard: API 598, ISO 5208, BS 6364
Construction Details: Bolted Bonnet / Pressure Seal Bonnet, OS & Y Type Rising
Stem
End Connection: Flanged, Butt-Weld
Operator / Actuator: Handwheel Gear, Actuator (Pneumatic, Hydraulic,
Electro-Hydraulic and Electric Motorised)
Cryogenic Service: Globe Valves can be designed in a special version suitable for
cryogenic service. In this case, all the materials and technical features are
designed to withstand minimum design temperature required by the Customer,
down to Cryogenic -196°C. If required by the customer, specific Cryogenic Tests
are performed to verify the behaviour of production valves in terms of valve
torque, sealing capability, emissions vs the ambient.
